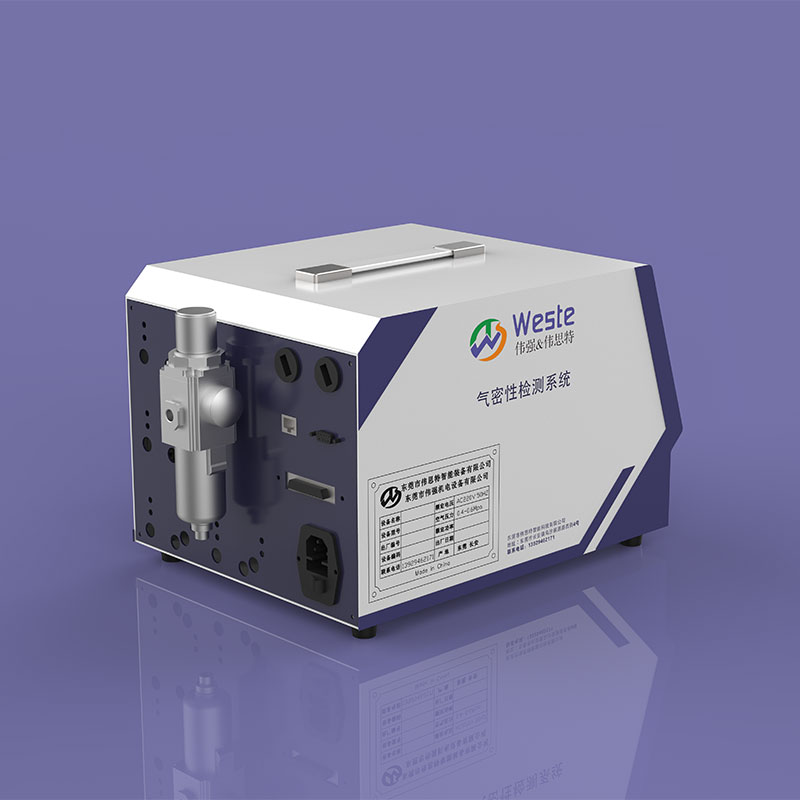

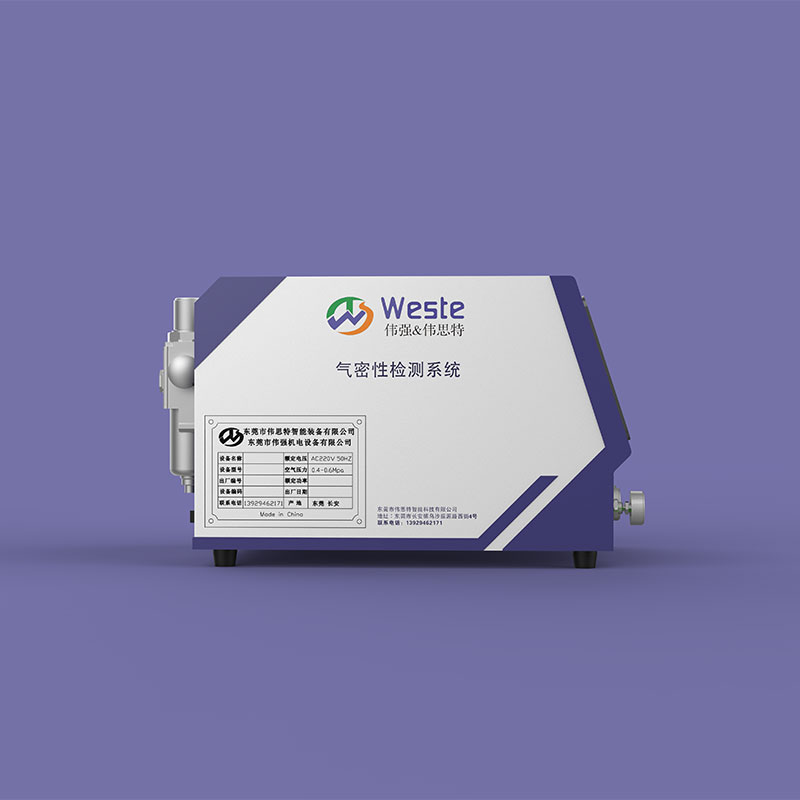

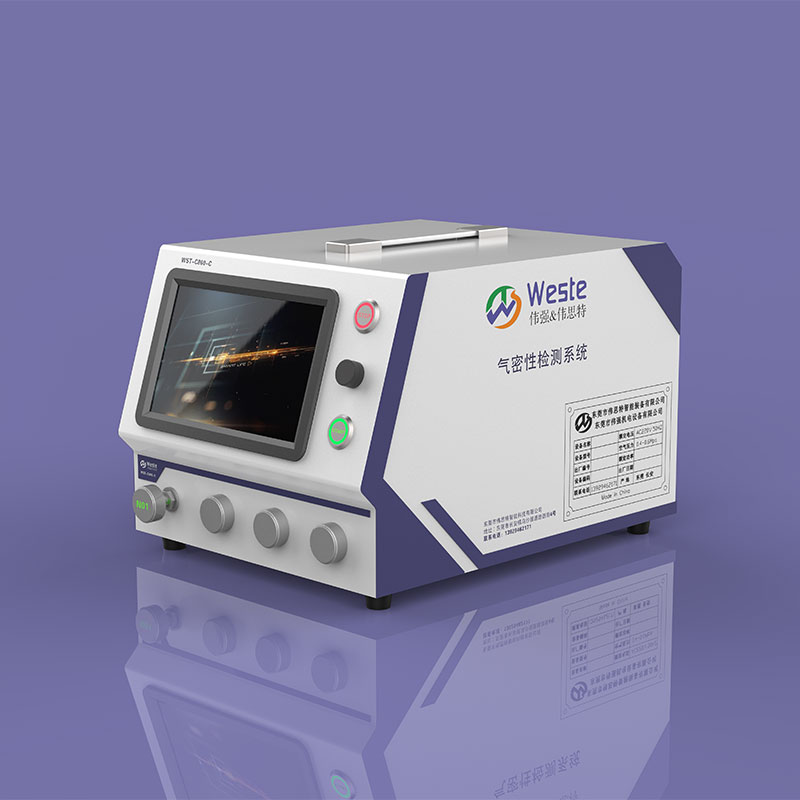

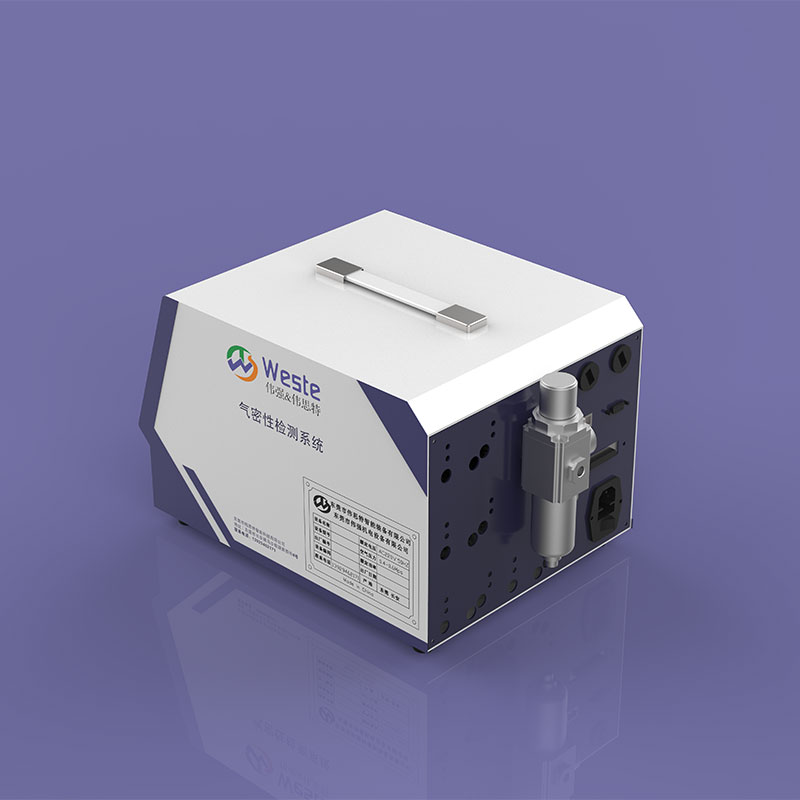

Weiqiang & Weisite Airtightness Testers feature advanced circuit design, dual air path protection, and advanced algorithms. They achieve high-precision testing requirements through two-chamber comparison, realizing indiscriminate testing, and are suitable for airtightness testing of products with IP67 and above high requirements. The conventional testing cycle is 16S: (inflation 5S, balance 5S, testing 5S, exhaust 1S), adjustable according to the actual product being tested to meet customized requirements, and suitable for different testing methods from single-channel to multi-channel.
Widely applied to sealing and waterproof testing of products in military, new energy vehicles, medical, auto/motorcycle parts, security, communications, digital, daily chemicals, hardware, plastics, electronics, toys, lighting, and other industries.
|
Air Pressure Requirement
|
0.4-1.2 M pa
|
|
Detection Time (Adjustable)
|
0-2000 S
|
|
Pressure Stabilization Time (Adjustable)
|
0-500 S
|
|
Exhaust Time (Adjustable)
|
0-1000 S
|
|
Power
|
350W
|
|
Zero-Leakage Solenoid Valve
|
|
|
Product Dimensions
|
267*433*235mm
|
|
Customizable according to customer requirements; ultra-high pressure testers can reach 2000k pa
|
